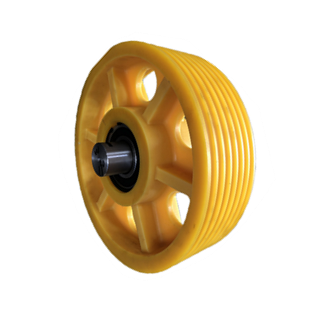

ESN03--NYLON DEFLECTOR SHEAVE

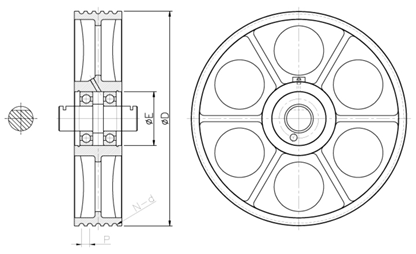

Model	Dia.	Aperture	Slots	Rope	Slot pitch	Bearing	Rated Load
	D	E	N	d	p		Q
ESN03-240	Φ240	80	2	6.5	10	6206	≤450kg
		80	3			6208	≤800kg
		90	4			6210	≤800kg
		110	5			6212	≤1000kg
ESN03-320	Φ320	110	3	8	12	6212	≤630kg
			3		13		≤630kg
			4		12		≤800kg
			4		13		≤800kg
			5		12		≤1000kg
			5		13		≤1000kg
		130	6		12	6312	≤1600kg
		130	6		13	6312	≤1600kg
		140	7		12	6216	≤1600kg
			7		13
			8		12
			8		13
ESN03-400	Φ400	140	7	10	15	6313	≤2000kg
			7	10	16
			8	8	12
				8	13
				10	15
				10	16
			9	8	12
			9	8	13
ESN03-480	Φ480	110	3	10	15	6212	≤800kg
			3	10	16
			4	8	12
			4	8	13
		130	4	10	15	6312	≤1000kg
			4	10	16
			5	8	12
				8	3
				10	15		≤1500kg
				10	16
			6	8	12
			6	8	13
		140	6	10	15	6313	≤2000kg
			6	10	16
			7	8	12
			7	8	13
ESN03-520	Φ520	130	3	13	20	6312	≤1000kg
			4	10	15
			4	10	16
			4	13	20		≤1300kg
			5	10	15
			5	10	16
			5	13	20		≤1600kg
			6	10	15
			6	10	16
		140	6	13	20	6313	≤2000kg
			7	10	15
			7	10	16
		150	6	13	20	6314	≤3000kg
			7	10	15
			7	10	16
ESN03-640	Φ640	160	5	16	25	6315	≤3000kg
		160	6	13	20	6315	≤3000kg
		170	6	16	25	6316	≤5000kg
		170	7	13	20	6316	≤5000kg
